LED Matrix Graph

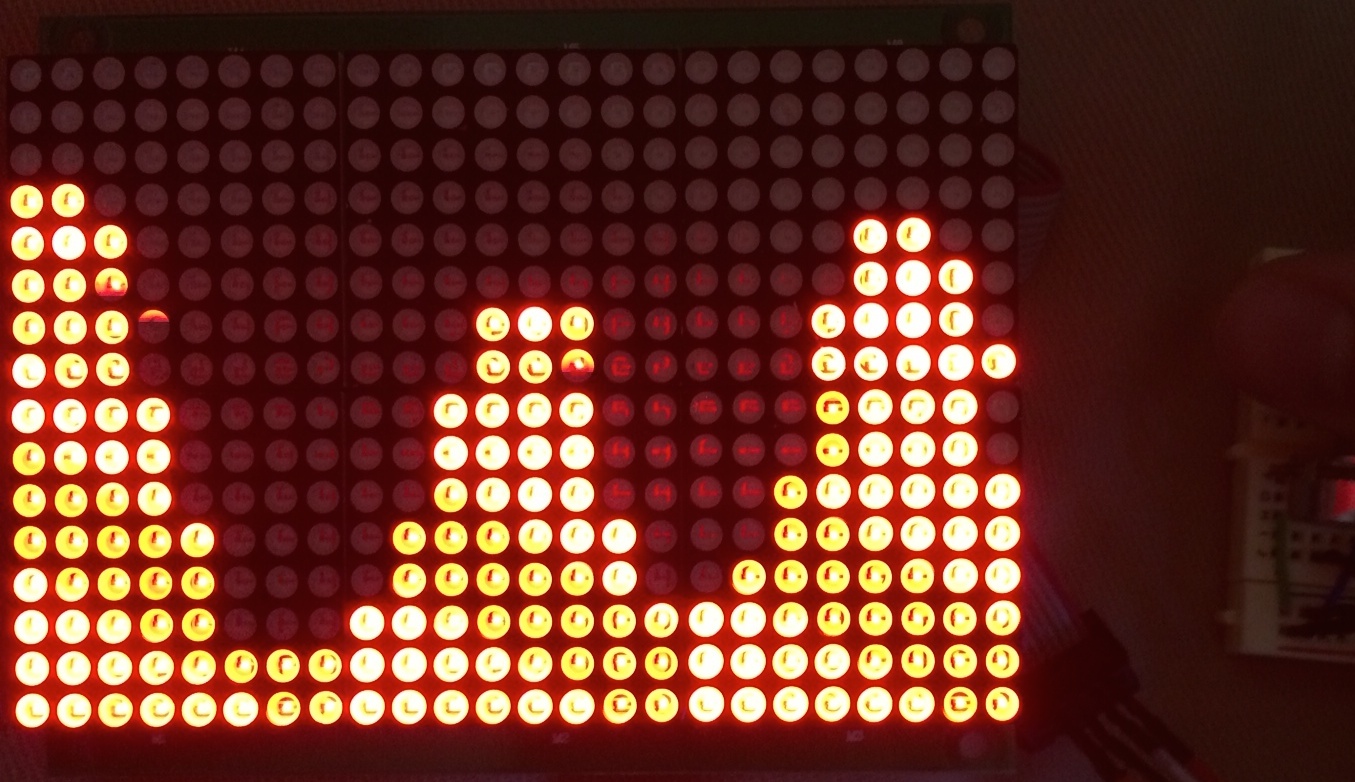

LED Matrix Graph is a simple program to track two physical values over time. Start with two potentiometers; variations replace the potentiometers with Light-dependent Resistors (LDRs), then with capacitive sensors. The two values are graphically represented on a 16x24 Red LED Matrix, like this one from Adafruit.

Requires minimal soldering skill; moderately complex programming.

Hardware

You’ll need the following components:

Preparing the LED Matrix board may also require a soldering iron to bridge jumper J5 on the back of the board. See the Adafruit tutorial for details.

Wiring

  1. Build this circuit:

    Two potentiometers, connected to pins A0 and A1

  2. Plug jumper wires into the ribbon cable and your Arduino as shown in this Adafruit tutorial, but plug the 5V (red) and GND (black) wires into your breadboard instead of directly into the Arduino. Try to match colors if you can; it will make for less (and eaiser) debugging.

Software

  1. Download and install the HT1632 library for the LED matrix board.

  2. Copy this code into a new Arduino sketch:

    // LED Matrix Graph
    // by J.D. Zamfirescu
    // Last update: June 2014
    // graph.ino

    #include "HT1632.h" // Get this library here: http://github.com/workshopweekend/HT1632

    #define DATA 2
    #define WR   3
    #define CS   4

    HT1632LEDMatrix matrix = HT1632LEDMatrix(DATA, WR, CS);

    const int numSamples = 24;

    int a_values[numSamples], b_values[numSamples];
    int ptr = 0;

    void setup() {
      matrix.begin(HT1632_COMMON_16NMOS);
      matrix.clearScreen();
      Serial.begin(9600);
    }

    void loop() {
      matrix.setScreen(0);
      for (int i = 0; i < numSamples; i++) {
        matrix.drawLine(i, b_values[(ptr+i)%numSamples], i, a_values[(ptr+i)%numSamples], 1);
      }
      matrix.writeScreen();
      a_values[ptr] = getAValue();
      b_values[ptr] = getBValue();
      ptr = (ptr + 1) % numSamples;
      delay(50);
    }

    int getAValue() {
      return analogRead(A0)/64;
    }

    int getBValue() {
      return analogRead(A1)/64;
    }

  3. Upload the project!

Variations

  1. Replace the potentiometers with a voltage divider consisting of a light-dependent resistor and a 10 kΩ resistor, as in the following circuit:

    Two LDRs, connected to pins A0 and A1 with 10k resistors

    Note that the LDR circuits now never reach either extreme of their range. Read about the map function and see if you can resolve this issue.

  2. Replace the LDRs with capacitive sensing inputs, using a 1 MΩ resistor as in the following circuit:

    Two capsense inputs, on pins 9 and 11, transmission on pin 10, 1Mohm resistors

    Then, replace the getAValue and getBValue functions with the following code:

    #include <CapacitiveSensor.h>

    CapacitiveSensor sensorA = CapacitiveSensor(10,9);
    CapacitiveSensor sensorB = CapacitiveSensor(10,11);

    int getAValue() {
      return sensorA.capacitiveSensor(25)/64;
    }

    int getBValue() {
      return sensorB.capacitiveSensor(25)/64;
    }


    Download and install the capacitive sensing library. Learn more about capacitive sensing at the Arduino playground.
