Electronic Etch-a-Sketch™

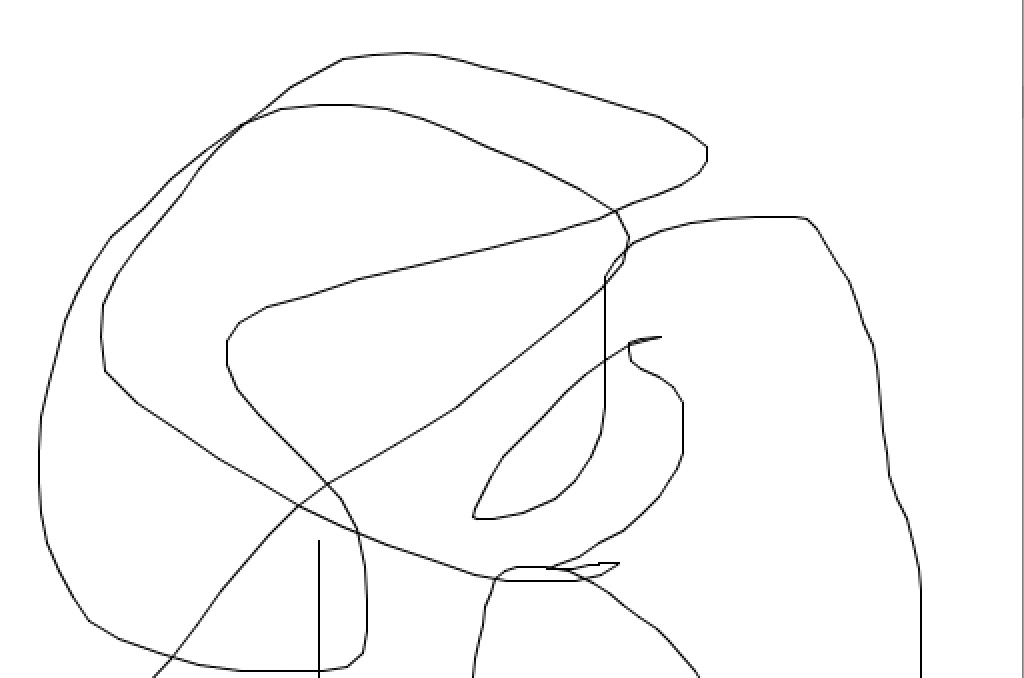

The Electronic Etch-a-Sketch™ uses two rotary potentiometers as inputs, and a Processing sketch as an output. The Arduino coninunously sends an X and a Y coordinate over the Serial interface. The Processing sketch uses these coordinates to move a draw pointer around a window, tracing as it does so, just like an Etch-a-Sketch™.
Hardware
- 1 Arduino. We use the Arduino Uno, but any standard Arduino is appropriate for this project.
- 1 breadboard.
- 2 10K potentiometers.
- Wires for wiring.
Wiring
Wire up your Arduino as shown in the image below:
The colors of the wires are purely cosmetic; you don’t need to match the colors shown in the diagram.
Software
Download Processing, an easy-to-use graphics programming development environment.
Upload the following code to your Arduino:
int x; int y; void setup() { Serial.begin(9600); } void loop() { x = analogRead(A0); y = analogRead(A1); Serial.print(x); Serial.print(" "); Serial.println(y); delay(50); }
Verify that your Arduino is sending frequent X and Y coordinates by clicking on the Serial Monitor button in the Arduino window.
Close the Serial Monitor and open Processing.
Copy the following code into a new Processing sketch:
// Etch-a-Sketch // based on a sketch by Trevor Shannon import processing.serial.*; Serial port; String serialInterface = "/dev/cu.usbmodem-blah"; int lastX = -1; int lastY = -1; int x; int y; String nextXY; void setup() { size(512, 512); background(255); port = new Serial(this, serialInterface, 9600); port.bufferUntil('\n'); } void draw() { String[] parts = splitTokens(nextXY); if (parts.length >= 2) { x = int(parts[0])/2; y = int(parts[1])/2; if (lastX >= 0 && lastY >= 0) { line(x, y, lastX, lastY); } lastX = x; lastY = y; } } void mouseClicked() { background(255); } void serialEvent(Serial p) { nextXY = p.readString(); }
Replace the string:
/dev/cu.usbmodem-blah
with the serial port that appears in the lower-right of your Arduino window.Run the Processing sketch, and rotate the potentiometers!
Variations
- Use a different input to control the paddles. Perhaps an Ultrasonic distance sensor, using the NewPing library? Or a membrane potentiometer or a flex sensor?
- Modify the Processing code to use a different coordinated system: Use the first coordinate as the distance from the center of the output window, and the second coordinate as the angle from a vertical line up from the center.
